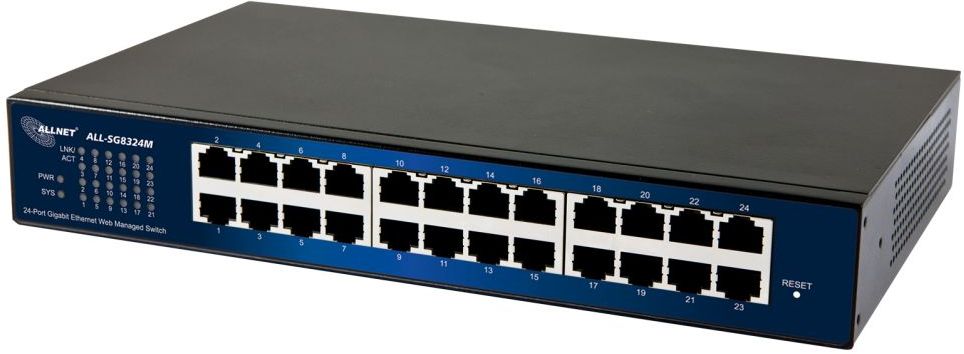

Allnet switch 24 poorts
- 24 poorts switch, smart managed
- Smart Managed Gigabit Layer-2 zonder blower, SNMP, geschikt voor desktop en 19 inch montage
- Ondersteunt NWay protocol voor de snelheid (10/100/1000Mbps) en duplex mode (half/full) aut-detection
- Ondersteunt back-pressure (half duplex), flow control (IEEE 802.3x en IEEE 802.3az Energy Efficient Ethernet
- VLAN "64 Static / Port-Based / Tagged Based
- Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
- IGMP Snooping (v1/v2/v3)
- QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
- Stormcontrol (Broadcast, Multicast, Unicast)
- 48,26cm (19"inch) en te gebruiken als desktop/wandmontage
- Metalen behuizing
|
|
- Layer 2-Switch, smart, Store and Foreward, Auto-Negotiation
- Switch-Type: standalone
- Switching poorten: 24x RJ45 10/100/1000BaseT(X)
- Uplink: op alle poorten mogelijk (Auto MDI/MDI-X)
- Full Duplex Mode:
- Buffer Memory: 524,8K Bytes
- Jumbo Frame: 10K Bytes
- Switch Fabric: 32Gbps
- Adressen management: zelflerend
- Adressentabel MAC: 8000
- Led aanduiding: Power, Link, Activity
- Stroomverzorging: 100 - 240V AC, interne netvoeding
- Stroomverbruik: 15 Watt maximaal
Standaards:
- IEEE802.3 10BaseT
- IEEE802.3u 100BaseTX
- IEEE802.ab 1000BaseT
- IEEE802.3ad Link Aggregation
- IEEE802.1ab Link Discovery Protocol (LLDP)
- IEEE802.3x full-duplex operation and flow control
- IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p class of service, priority protocols
- IEEE802.1Q VLAN Tagged Based
- IEEE802.1d Spanning Tree (STP)
- IEEE802.1w Spanning Tree (RSTP)
Layer2 functies:
- Flow Control (Full-Duplex & Half-Duplex)
- Spanning Tree (IEEE802.1d STP & IEEE802.1w RSTP, Auto Edge Port, Self Loop Detection)
- VLAN (64 Statis VLAN, Port-based, IEEE802.1q Tagged-based)
- Voice VLAN (OUI Mode)
- Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max groups, 8 Ports/groups, Traffic Load Balancing)
- IGMP Snooping (256 Multicast groups, IGMP v1/v2/v3
- IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
QoS Features:
- 8 Priority Queue
- Rate Limit (Port Based Ingress/Egress)
- Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid)
- Class of Service (Port-based, Flow-based, 802.1p, IP Tos, IP DSCP)
- Security: Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
- HTTPS and SSL 2.0
- Account Manager (Multiple Account, Multi-Level Security)
- Management VLAN
- Port-Isolation
- DoS Prevention
IPv6:
- IPv6 Application (HTTP/HTTPS, TELNET, SNMP, TFTP, PING, PHCPv6)
- IPv6 Host (Static Adress Length, Default Gateway, Neighbor Discovery (ND), Duplicate Adress Detection, ICMPv6)
Management:
- Web-GUI (HTTP,HTTPS)
- Command Line Interface CLI ( Console, RFC854)
- SNMP (v1/v2)
- File Managment (Firmware Upgrade, Configuration Download
- DHCP Client
- DNS Client
- Mirroring (Port-based (many to one)
- Syslog (RFC3164, LocalRAM, Local Flash, Remote Server)
- Time Setting (Local, SNTP)
- Cable Diagnostics (Cable Test)
- Port Utiliation
- Reset Button
- EEE (802.3az)
Afmetingen:
- 267 x 162 x 42 mm (BxDxH)
- Behuizing: ook geschikt voor 19 inch montage (beugels meegeleverd)
|
