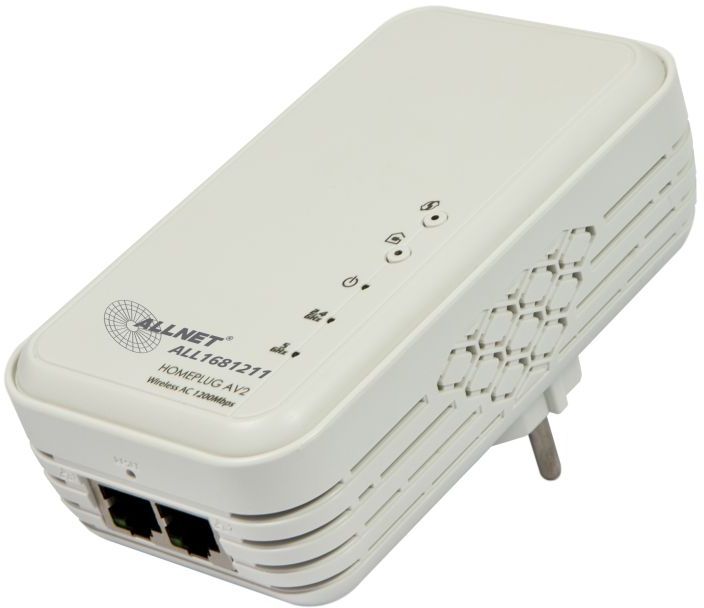

ALLNET Powerline 1200Mbit HomePlugV2 "SmartLink" MIMO met WiFI AC ALL1681211

2 in 1/ 1200Mbit Powerline & Wireless AC Accesspoint

De ALL1681211 Adapter Powerline-Adapter HomePlug AV2 Standaard, Smartlink 1200 Mbps en MIMO met een geïntegreerde Wireless AC Accesspoint
Gelijktijdige dualband wireless connectivity, standaard met een dualband functie, zowel 2,4 GHz (tot 300 Mbit/s) en de snellere frequentieband van 5,0 GHz (tot 867 Mbit/s)
Maakt gebruikt van de nieuwste Qualcomm Atheros chipset QCA7500/QCA8334
Beschikt over twee Gigabit Ethernet RJ45 interfaces en is is compatibel met de Powerline-normen IEEE1901/HomePlug AV en GreenPHY
De mogelijkheid eenvoudig Powerline adapters van andere fabrikanten te gebruiken
HomePlug AV2 Standard
Tot 1200 Mbps Powerline Dataentransferrate over Powerline
Compatibel met andere HomePlug AV technologiën
MIMO ondersteuning
2 x Gigabit Ethernet Poorten

Specificaties

Chipset: Qualcomm QCA7500 "PLC Chipset" + QCA8334 "4port Switch" + QCA9882 "WLAN
2x2 Wireless AC/abgn SOC"
Standards: IEEE 1901, IEEE 1905.1
HomePlug AV Compliant
HomePlug AV2 Compliant
AV2 30MHz and 67MHz MIMO profiles
AV2 30MHz and 67MHz SISO profiles
Power Save mode
Co- existence with HomePlug 1.0/Turbo Nodes
Compliant to ErP 2013 directive
IEEE 802.3 10/100/1000 Ethernet(1200Mbps)
Integrated IEEE802.11AC/abgn Wireless Accesspoint
Brutto data rate Powerline: up to 1200Mbps
Frequency band: 2 MHz to 67 MHz
Access-Methode Powerline: Priority-based CSMA/CA channel access
Quality of Service: Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
Integrated Quality of Service (QoS)
Supports IGMP managed multicast session
Modulation: OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK, ROBO, und Mini-ROBO Modulation Schema
Powerline interface: Type F earthing contact connector (DE), Type C/E (FR)

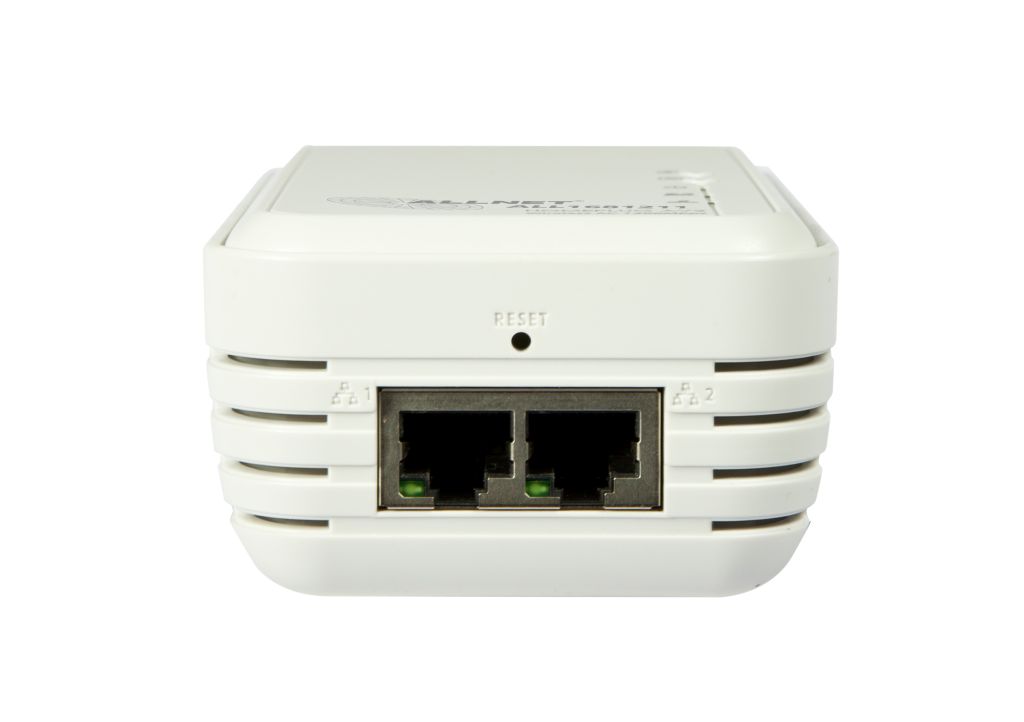

Network interface: 2x RJ45 10/100/1000Mbit
Wireless interface: 1x integrated IEEE802.11AC/abgn Dual-Bad 2x2 WiFi Accesspoint
Wireless security: WEP, TKIP, AES and WAPI Hardware Encryption
Wireless features: IEEE 802.11a/b/g/n/ac
Supports Spatial Multiplexing, Cyclic-Delay
Diversity(CDD), Low-Density Parity Check(LDP), Maximal Ratio Combining(MRC), and Space Time Block Code(STBC)
Frame Aggregation and Block ACK
802.11e-Compatible Bursting
Nodes/Clients: max. 15 devices
Security support: 128bit AES Link encryption with key management(aktivated via Simple Connect button)
LED indicators: Power LED, WPS LED
PowerLine Link/ACT Status LED
2x Ethernet Link/ACT Status LED
2,4GHz + 5,0GHz Status LED
Buttons: WPS Button, Simple Connect Push
Button,Factory Default Reset Button
Power supply: Type F earthing contact connector (DE), Type C/E (FR) Switch mode 85VAC to 265VAC
Operating systems: all TCP/IP operating systems
Operating systems for configurationsoftware: Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit
Housing: synthetic housing
Temperature operating: 0 ~ 40 °C
Humidity operating: 30% ~ 80% (non condensing)
Temperature storage: -25 ~ 70 °C
Humidity storage: 30% ~ 95% (non condensing)
Marks: CE
Dimensions: 128,88 x 68,16 x 44,16mm
Weight: 250g (only device)
Package content:
1x ALLNET ALL1681211
1x RJ45 patch cable 1m
1x CD-ROM with manual & software
