Powerline Adapter with PoE Function 600Mbit

Zolang de voorraad strekt, opvolger de 1200Mbit serie

HomePlugAV2 Powerline "Smartlink"

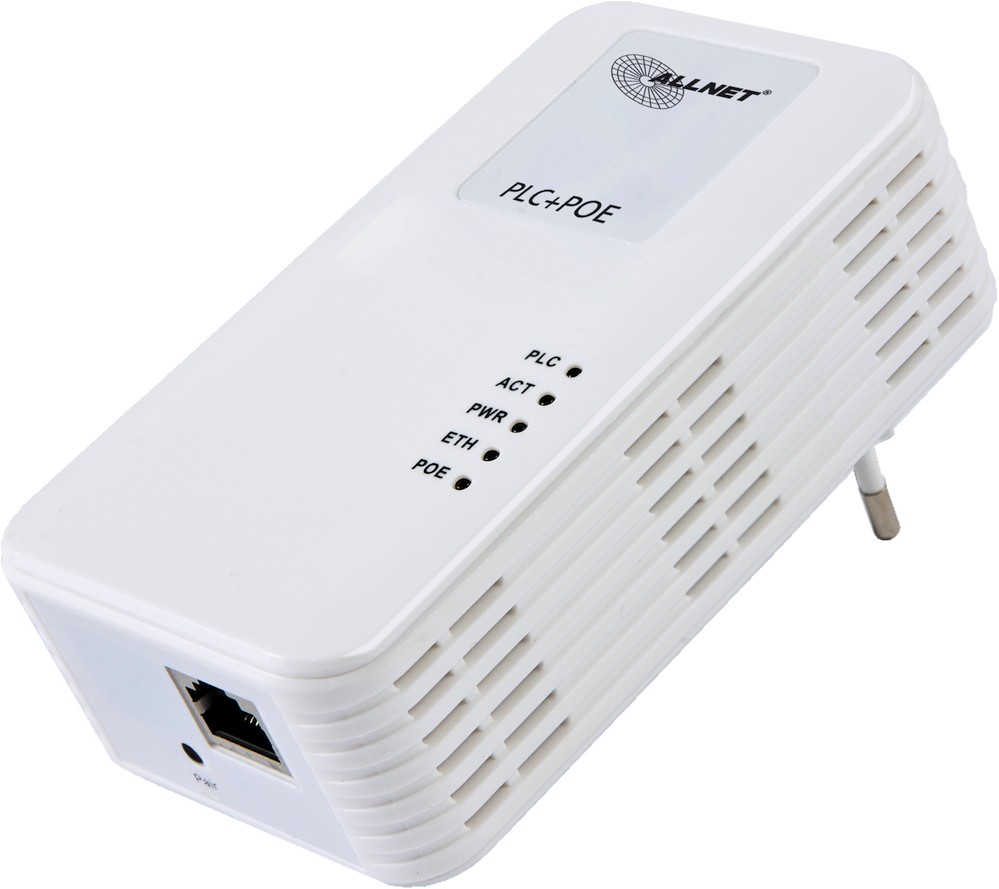

The ALLNET ALL168603 uses the latest Qualcomm QCA7450 / AR1540 chipset with SmartLink Technology.

It has a Gigabit Ethernet RJ45 port and is home to the Powerline Standards IEEE1901 / HomePlug AV and GreenPHY
compatible.

The integrated SmartLink technology of ALL168603 sends not only on the stage but also in parallel over the earth „green / yellow cable“. This SmartLink technology increases the chance that the Powerline Adapter can operate fault-free.

High data rates and quality of service (QoS) allow the use of HD multimedia applications and support you to realize, digital high-speed multimedia home networking throughout the home, including IPTV services, simultaneous HD video and audio distribution, Voice Over IP Calls , online gaming, high-speed Internet.

Specificaties

Interface: 1*LAN10/100/1000Base-TX applied for RJ45 interface
LED display lights: PLC(PLC signal light), ACT, PWR(power light),ETH(Ethernet light),POE(POE light)
Transmission band: 2-68MHz
Protocol: HomePlug AV, IEEE 802.3 IEEE 802.3u 10/100/1000Ethernet Standard, IEEE802.3af/at Standard
Security: 128-AES data encryption and key management technology
Transfer rate(PHY): 600Mbps
Modulation: OFDM
Power plug: EU
Power over Ethernet: Provides 55V, 30W for PD (Power device) IEEE802.3at, CAT5 Ethernet Pin Usage Data : 1,2,3,6 Power: 4,5,7,8
Power source: AC 100V-240V 60/50Hz
Operating environment: working temperature: 0° to +55°C, working humidity 10%-90% non-condensed state
Size: 96mm×67mm×23mm (L×W×H)
Weight: 300g
Marks: CE, ROHS
Package content: 1x PoE Adapter ALL168603
