Homeplug AV2 600Mbit PLC adapter with SmartLink

Zolang de voorraad strekt, opvolger de 1200Mbit serie

The fastest high-speed home network digital HD entertainment and 3D transmission throughout the home.

High Transfer rate of up to 600 Mbps. For all types of bandwidth-intensive transmission.

Full compatibility with all 200/500 AV HomePlug AV adapters.

Best energy saving mode: consumption is only 0.5 Watts in standby mode

600 Mbps HPAV2 MIMO solution
10/100/1000 M Fast Ethernet Interface Connection
128-bit AES Link Encryption with key management for secure Powerline communications
Integrated Quality of Service (QoS), four-level priority based contention access, and multi segment bursting
Frequency Band 2 -68 MHz
280 Mbps UDP/230 Mbps TCP
Node support 15 Total
Encryption “RESET”& “SETUP” push button

Application:

Multi-room HD Streaming
Carrier Grade IPTV Streaming
Broadband Extension
Over-The-Top (OTT) Streaming

Specificaties

Chipset: Qualcomm QCA7450 + AR1540
Standards: Powerline -> HomePlug AV2 SISO
Powerline -> HomePlug AV
Powerline -> IEEE 1901
Ethernet -> IEEE 802.3
Ethernet -> IEEE 802.3u
10/100/1000 Ethernet (1Gbps)
Energy Saving -> EuP Compliance
Brutto Data rate Powerline: up to 600Mbps
Frequency band: 2MHz to 68MHz
Access-Method Powerline: Priority-based CSMA/CA channel acess
Quality of Service:
    Intergrated QoS Enhancements
    Hardware Packet Classifiers for TOS, CoS and IP Port Number
    QoS Classification by destination MAC Adress and IP-Port
Modulations: OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK aund ROBO modulation scheme

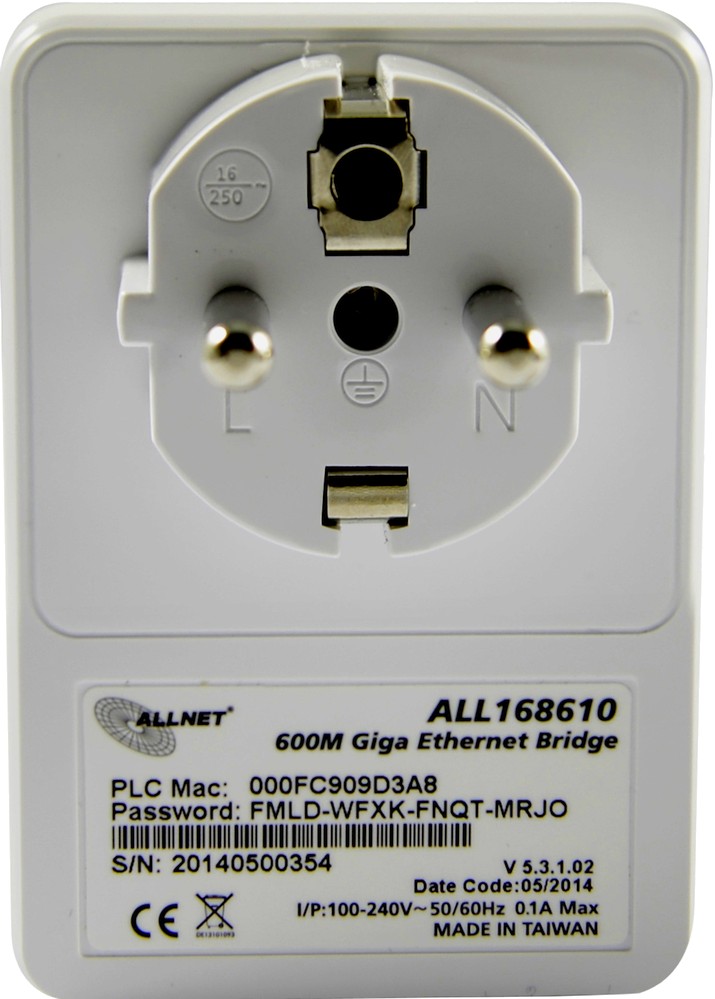

Powerline Port: EURO-power plug

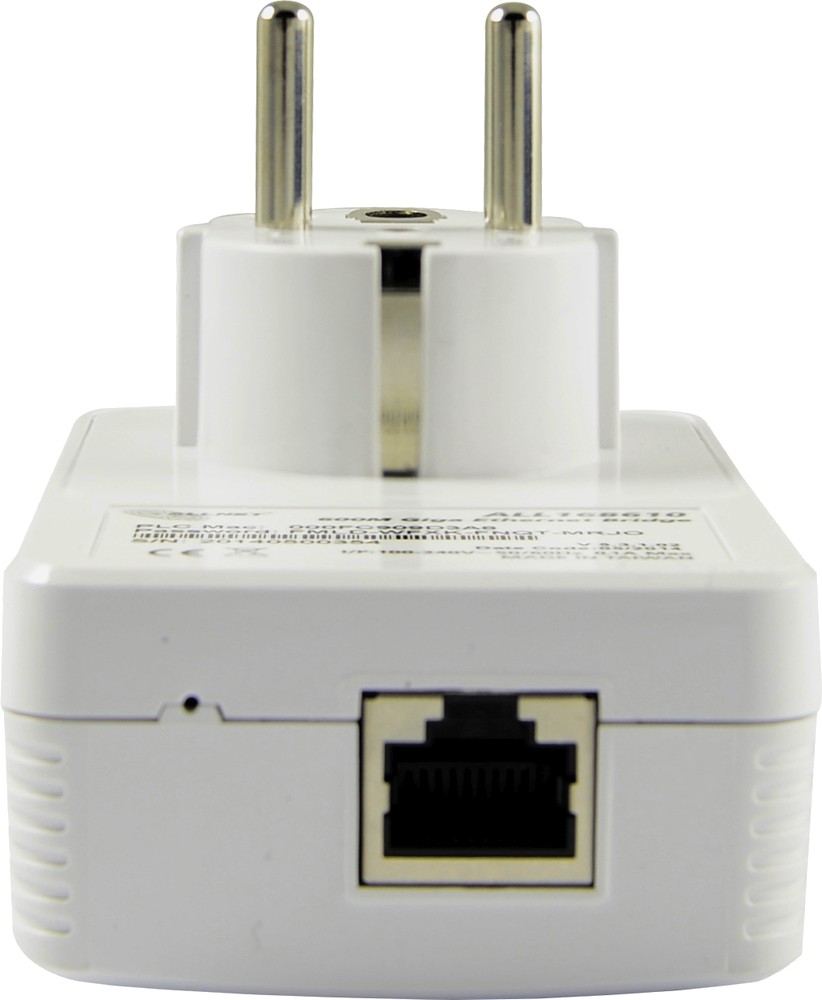

Network Port: 1x RJ45 10/100/1000Mbit
IGMP:
    Support IGMP managed multicast sessions
    IGMP snooping with multicast to multiple unicast support
    IGMP/MLD Adressfiltering
Nodes/Clients: up to 15 devices
Encoding: 128Bit AES-Encoding with key management
(activated by Simple Connect Button)

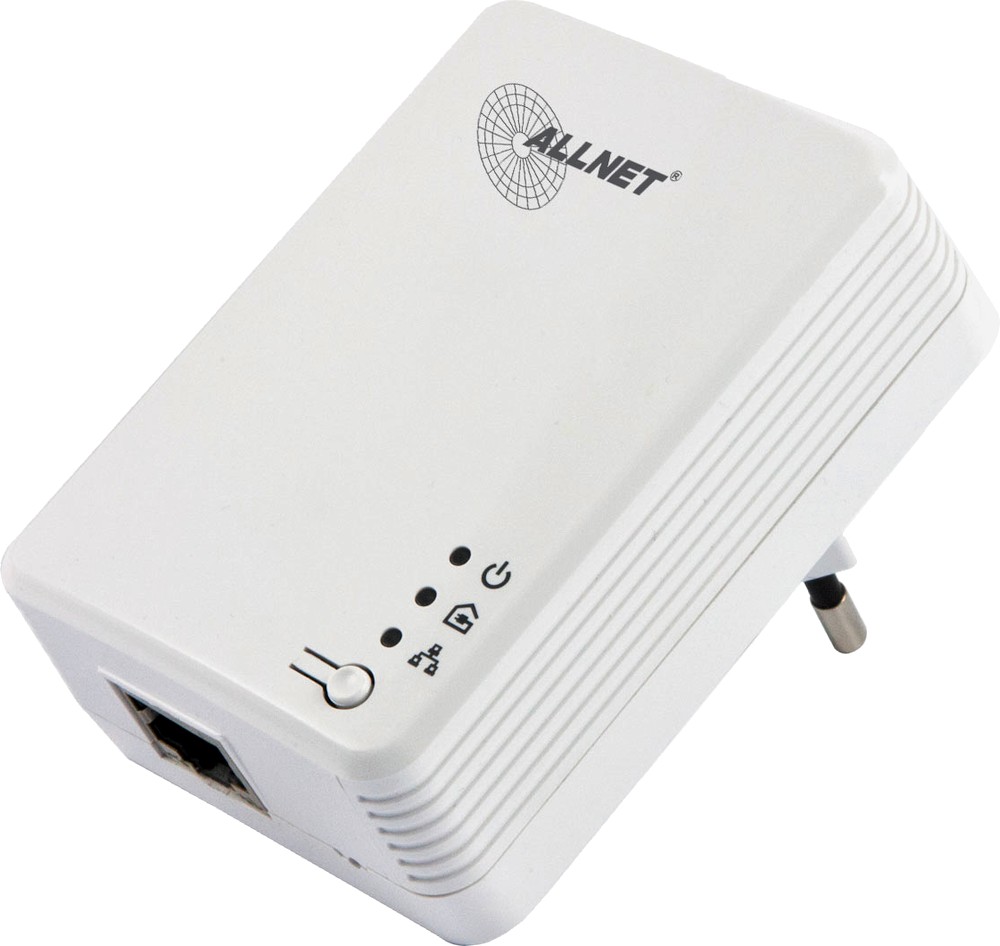

LED Indicator: Power LED, PowerLine Link/ACT Status LED, Ethernet Link/ACT Status LED
Power supply: 220~240 VAC, 50/60 Hz
Power consumption: Operating 3.6W, Standby max. 0.5W
Operating system for Usage: all TCP/IP operating system
Operating systems for configuration software: Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit
Case: Plastic case
Environment: Temperature operating: 0 ~ 40 °C
   Humidity operating: 30% ~ 80% (non-condensing)
   Temperature storage: -25 ~ 70 °C
   Humidity storage: 30% ~ 95% (non-condensing)
Mark: CE
Dimensions: 78 x 56 x 29 mm (Height x Width x Depth)
Weight: 94.9 grams (only adapter)
Package contents:
1x ALLNET ALL168610
1x RJ45 Patch cable 1.8m
1x CD with manual & software

ALL168610 Smart-Link art.nr.: 2.103708
