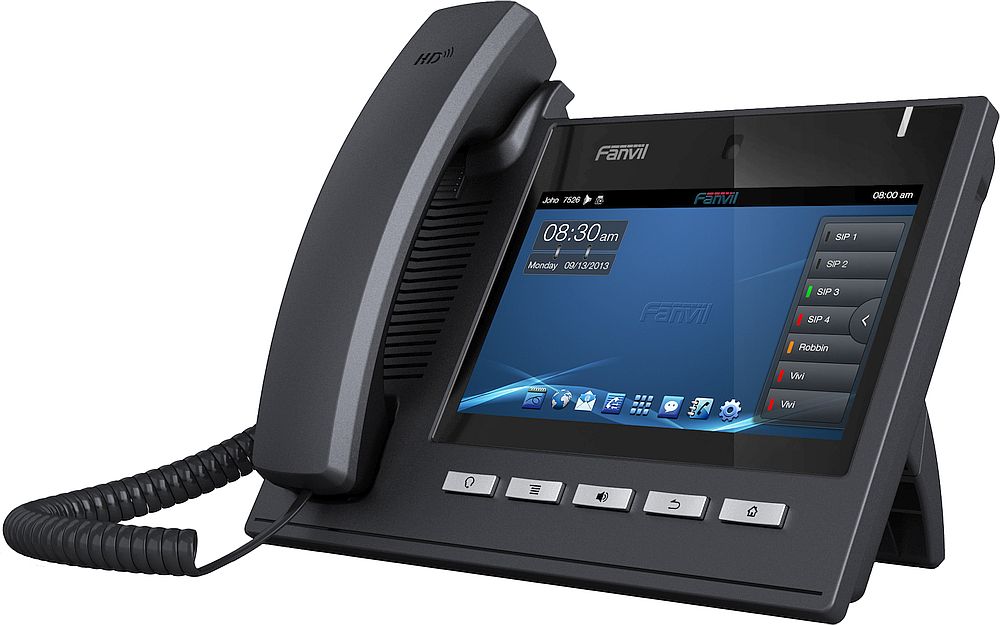

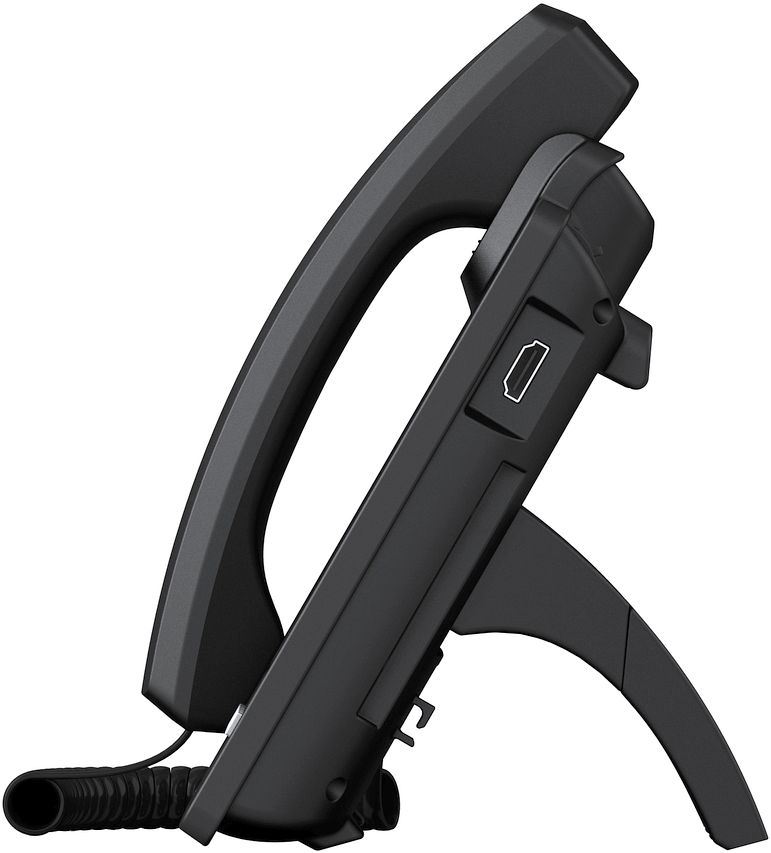

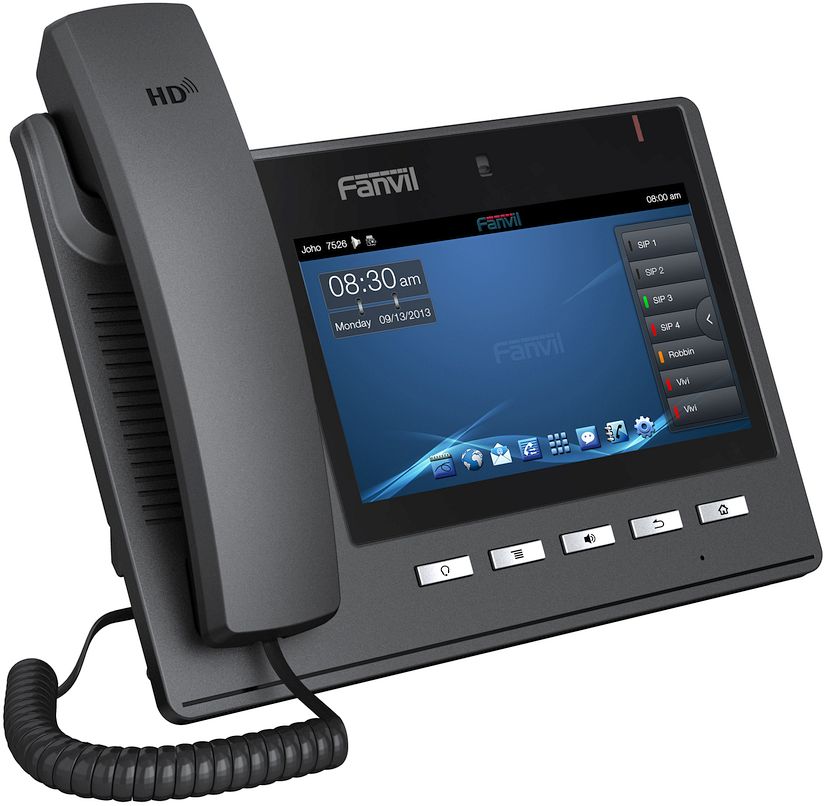

Fanvil C600
- Fanvil C600 VoIP Android OS 4.2.1 telefoon
- Met een 7 inch LCD touchscreen
- Ingebouwde 5 megapixelcamera
- Geschikt voor 6 SIP lijnen
Highlights:
- VoIP telefoon met 6 SIP-lijnen
- Ingebouwde 5 megapixelcamera
- Helder 7 inch touchscreen
- Android 4.2.1
- HD Voice geluidskwaliteit
- 2x Gigabit Ethernetpoort (met PoE)
- Ingebouwde speaker en microfoon
- RJ9 headset aansluiting
- Te beheren via web interface
- Compatibel met o.a. 3CX, Broadsoft, Elastix, Asterisk, Xorcom
| | Call features: - Call Forwarding, Call Transfer (blind/attended/alert), Call Holding, Call Waiting, Call Conference
- BLF List
- Capable of 10 way conversation
- Join Call
- Pickup
- Call Completion
- Hot desk function
- Soft DSS Key (Upto 100)
- Auto Redial / un-redial
- Support multi line and pre-dial
- Support messaging and MWI
- Voice recording during talking /local
- Flexible dial plan
- Hotline/Warm-line
- Call Rejection
- Black List
- Barring function for outgoing calls
- Do Not Disturb
- Auto Answer (Hands- free / Headset)
- Caller ID display
- CLIR (rejects anonymous calls)
- CLIP (to make an anonymous call)
- Dial without registration
- Supports Call Logs with Missed / Incoming / Outgoing calls
- Intercom/Intercom barge
- Password dial
- Headset ring
- Direct IP call without SIP proxy
Codec and Voice features: - Wideband codec: G.722
- Narrowband codec: G.711(A/μ), G.723.1, G.729AB, iLBC, AMR
- DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
- Full-duplex hands-free speaker phone with AEC (Max filter length –128ms)
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Adaptive jitter buffer
- Packet loss concealment (PLC)
- Audio format: WAV/MP3/OGG
Video Features: - Video codec: H.264 / H.263
- Image codec: JPEG/PNG/BMP/GIF
- Video format: MP4/3GP/FLV
- Video call resolution: QCIF / CIF / VGA / 4CIF (1280x720P Optional)
- Bandwidth selection: 64kbps~4Mbps
- Frame rate selection: 10~30fps
- Picture-in-Picture (PIP)
- Video from remote site can be displayed in full screen
- Supports up to 4 video display mode
Network features: - WAN/LAN: support bridge mode
- 2x 100/1000M Network Port (Power over Ethernet)
- PoE (802.3af)
- Main DNS and secondary DNS server
VLAN - SNTP Client
- VPN L2TP / PPTP / IPSec
- SIP SRTP
- Web HTTP / HTTPS
- QoS: 802.1p/q, DSCP
- MD5 authentication
- Web Filter
- DHCP/ static/ PPPoE
- STUN
Physical features: - Adapter Input:100-240V, output:12V/1A
- WAN Port -10/100/1000 Base-T RJ-45 for LAN
- LAN Port- 10/100/1000 Base-T RJ-45 for PC
- HDMI Port - Type A
- SD Interface - TF Card Support Upto 32G
- USB Port - USB 2.0
- Power Consumption- Idle: 2.5W/Active: 5W
- LCD Size Diagonal: 7 inch (800 x 480)
- Capacitive touch screen
- Camera adjustable position
- CPU Freescale Core Quad 1 Ghz
- SDRAM 1GB DDR3 1066
- Flash 4GB
- Weight : 1.2Kg
|
